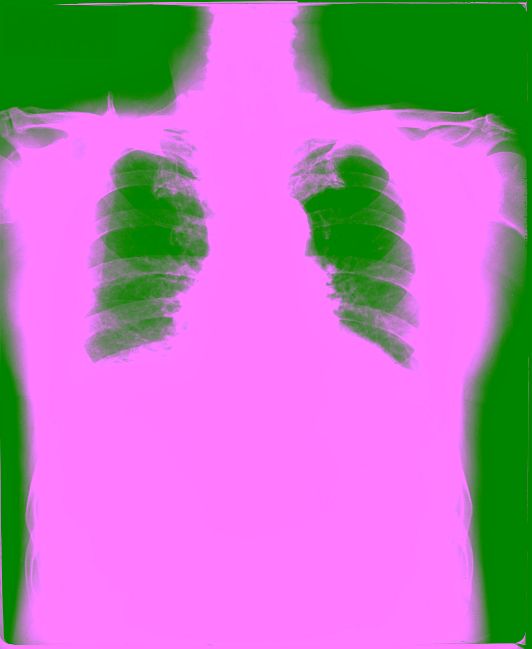

Image color problem

#1 Post by majorss » Wed, 2019-09-11, 04:08


The following programs display correctly.
Leadtools, Sante DICOM Viewer and Mango.

What is the problem?

Test Environment
Visual C++ 2013, DCMTK 3.6.3 and 3.6.4

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
# Dicom-File-Format

# Dicom-Meta-Information-Header
# Used TransferSyntax: Little Endian Explicit
(0002,0000) UL 204 # 4, 1 FileMetaInformationGroupLength
(0002,0001) OB 00\01 # 2, 1 FileMetaInformationVersion
(0002,0002) UI =SecondaryCaptureImageStorage # 26, 1 MediaStorageSOPClassUID
(0002,0003) UI [...] # 46, 1 MediaStorageSOPInstanceUID
(0002,0010) UI =JPEGLossless:Non-hierarchical:Process14 # 22, 1 TransferSyntaxUID // 1.2.840.10008.1.2.4.57
(0002,0012) UI [1.3.6.1.4.1.11157.4.8.6] # 24, 1 ImplementationClassUID
(0002,0013) SH [...] # 24, 1 ImplementationVersionName
(0002,0016) AE (no value available) # 0, 0 SourceApplicationEntityTitle

# Dicom-Data-Set
# Used TransferSyntax: JPEG Lossless, Non-hierarchical, Process 14
(0008,0000) UL 232 # 4, 1 GenericGroupLength
(0008,0005) CS (no value available) # 0, 0 SpecificCharacterSet
(0008,0012) DA [...] # 8, 1 InstanceCreationDate
(0008,0016) UI =SecondaryCaptureImageStorage # 26, 1 SOPClassUID
(0008,0018) UI [...] # 46, 1 SOPInstanceUID
(0008,0020) DA [...] # 8, 1 StudyDate
(0008,0023) DA [...] # 8, 1 ContentDate
(0008,0050) PN [...] # 14, 1 AccessionNumber
(0008,0060) CS [OT] # 2, 1 Modality
(0008,0064) CS [WSD] # 4, 1 ConversionType
(0008,0070) LO [...] # 8, 1 Manufacturer
(0008,0080) LO [...] # 10, 1 InstitutionName
(0008,1030) LO [-] # 2, 1 StudyDescription
(0010,0000) UL 54 # 4, 1 GenericGroupLength
(0010,0010) PN [...] # 6, 1 PatientName
(0010,0020) LO [...] # 6, 1 PatientID
(0010,0030) DA (no value available) # 0, 0 PatientBirthDate
(0010,0040) CS [N] # 2, 1 PatientSex
(0010,1010) AS (no value available) # 0, 0 PatientAge
(0018,0000) UL 8 # 4, 1 GenericGroupLength
(0018,0015) CS (no value available) # 0, 0 BodyPartExamined
(0020,0000) UL 136 # 4, 1 GenericGroupLength
(0020,000d) UI [...] # 40, 1 StudyInstanceUID
(0020,000e) UI [...] # 42, 1 SeriesInstanceUID
(0020,0010) SH [1] # 2, 1 StudyID
(0020,0011) IS [1] # 2, 1 SeriesNumber
(0020,0013) IS [1] # 2, 1 InstanceNumber
(0020,0020) CS (no value available) # 0, 0 PatientOrientation
(0028,0000) UL 110 # 4, 1 GenericGroupLength
(0028,0002) US 3 # 2, 1 SamplesPerPixel
(0028,0004) CS [YBR_FULL_422] # 12, 1 PhotometricInterpretation
(0028,0006) US 0 # 2, 1 PlanarConfiguration
(0028,0010) US 2596 # 2, 1 Rows
(0028,0011) US 2128 # 2, 1 Columns
(0028,0100) US 8 # 2, 1 BitsAllocated
(0028,0101) US 8 # 2, 1 BitsStored
(0028,0102) US 7 # 2, 1 HighBit
(0028,0103) US 0 # 2, 1 PixelRepresentation
(0028,2110) CS [01] # 2, 1 LossyImageCompression
(7fe0,0000) UL 4294967295 # 4, 1 GenericGroupLength
(7fe0,0010) OB (PixelSequence #=2) # u/l, 1 PixelData
(fffe,e000) pi (no value available) # 0, 1 Item
(fffe,e000) pi ff\d8\ff\e0\00\10\4a\46\49\46\00\01\02\01\00\60\00\60\00\00\ff\c3... # 4631236, 1 Item
(fffe,e0dd) na (SequenceDelimitationItem) # 0, 0 SequenceDelimitationItem
